Product Parameters:
Model: DZF-6210BE
Capacity (L): 215L
Power supply: 220V 50HZ
Temperature control range (° C): RT+10-250 ° C
Temperature resolution (° C): 0.1 ° C
Vacuum degree (pa): ＜ 133pa
Power (W): 3000W
Working dimensions (depth X width X height) mm: 600X550X650
Dimensions (Depth X Width X Height) mm: 820X970X1020
Packaging dimensions (depth X width X height) mm: 940X1090X1180
Net weight/gross weight (kg): 205kg/230kg
Note: Items without numbers refer to Iron Plate Studio; B is 201 stainless steel workshop; BE is a 304 stainless steel workshop
The above temperature and humidity parameters were measured at an unloaded temperature of 28 ℃ and a humidity of 65% RH
- Product Details
- Product manual

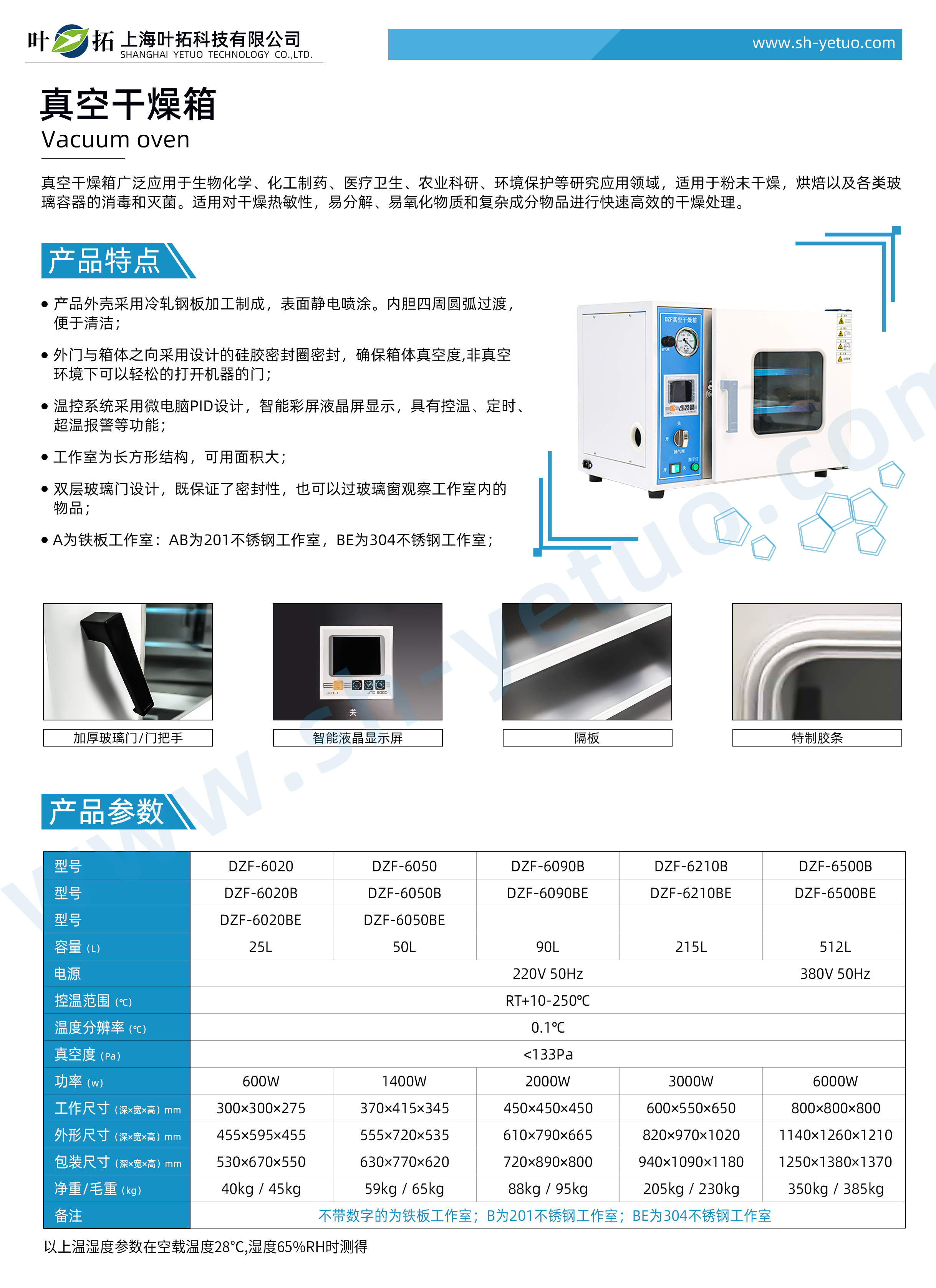

Yetuo DZF-6210BE desktop vacuum drying oven
Model: DZF-6210BE
Product Overview:
Vacuum drying oven is widely used in research and application fields such as biochemistry, chemical pharmaceuticals, hygiene, agricultural research, environmental protection, etc. It is suitable for powder drying. Disinfection and sterilization of baking and preparation glass containers. Suitable for rapid drying of heat sensitive, easily decomposable, easily oxidizable substances and complex components.
Product features of Yetuo DZF-6210BE desktop vacuum drying oven
The product shell is made of cold-rolled steel plate and the surface is electrostatically sprayed. Circular transitions around the inner liner for easy cleaning;
The direction between the outer door and the box is sealed with a designed silicone sealing ring to ensure the vacuum degree of the box. The machine door can be easily opened in non vacuum environments;
The temperature control system adopts microcomputer PID design, intelligent color screen LCD display, and has functions such as temperature control, timing, and over temperature alarm;
The studio is a rectangular structure with a large usable area;
The double-layer glass door design ensures both sealing and allows for observation of items inside the studio through the glass window;
A is the iron plate workshop: AB is the 201 stainless steel workshop, BE is the 304 stainless steel workshop;
